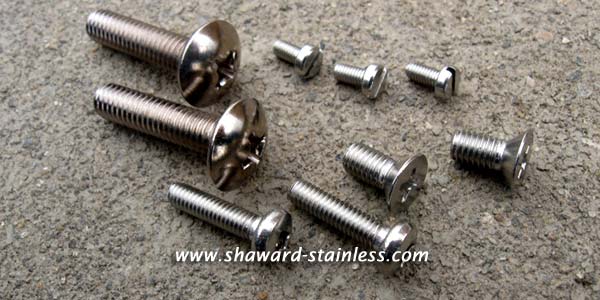

Machine screws |
|
Standards: |
DIN84 - slotted cheese head screw
DIN85 - slotted pan head screw
DIN963 - slotted countersunk head screw
DIN964 - slotted raised countersunk
head screw
DIN965 - cross recessed countersunk head screw
DIN966 -
cross recessed raised countersunk head screw
DIN7985 - cross recess pan head screw
ANSI B18.6.3 / ASME |
Heads: |
Pan, cheese, truss, countersunk, raised countersunk (CSK), or special on request |
Drives: |
Slot, cross recessed, phillips, phillips+slot combination, pozidrive, torx, or special on request |
Threads: |
Metric, UNC, UNF, BSW |
Size: |
M2 - M10; #4(1/8") - 1/2" |
Length: |
max. 80mm; max. 2" |
Material: |
SS304, SS316 |
|
|
|
| |
|
| |
|
| |
|
| |
|
|
